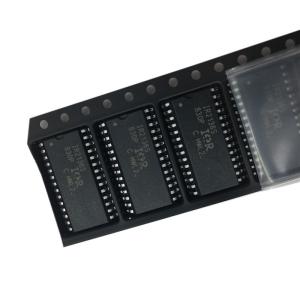

IR2136STRPBF Power Management ICs Gate Drivers Infineon Technologies

• 600V three-phase gate driver IC with enable, fault reporting and over current protection

• Floating channel designed for bootstrap operation
• Fully operational to +600 V
• Tolerant to negative transient voltage, dV/dt immune
• Gate drive supply range from 10 V to 20 V (IR2136/ IR21368), 11.5 V to 20 V (IR21362D), or 12 V to 20 V (IR21363/IR21365/IR21366/IR21367)
• Undervoltage lockout for all channels
• Over-current shutdown turns off all six drivers
• Independent 3 half-bridge drivers
• Matched propagation delay for all channels
• Cross-conduction prevention logic
• Low side output out of phase with inputs. High side outputs out of phase (IR213(6,63, 65, 66, 67, 68)), or in phase (IR21362) with inputs
• 3.3 V logic compatible
• Lower di/dt gate drive for better noise immunity
• Externally programmable delay for automatic fault clear
• All parts are LEAD-FREE

• IR2136STRPBF Power Management ICs Gate Drivers Infineon Technologies

• 3D printers
• Home appliances
• Motor control and drives
• Power tools
• Trusted Semiconductor Solution for Light Electric Vehicles (LEV)
• BLDC Motors
• Three-Phase Permanent Magnet Synchronous Motors
• Inverters
• Half Bridge Drivers
• Robotic Control Systems
• Appliances
• Grid infrastructure
• EPOS • Home theate
